Sebaka sa Tšimoloho:Hangzhou, China
Tlhaloso e Akaretsang
ZW8-12 Series Outdoor high voltage vacuum circuit breaker ke sesebelisoa se ka sehloohong sa lisebelisoa tsa 12KV tse lekantsoeng, mekhahlelo e meraro ea AC50Hz, ho bulela / ho tima hona joale, hajoale, le potoloho e khuts'oane ea netweke ea mahaeng kapa ea litoropo. Sebopeho sa sekhechana ke sa mekhahlelo e meraro e bokellelitsoeng ka tankeng, phaposi e tima ea mekato e meraro e koaletsoeng ka tanka ea tšepe, thepa e kenang e pakeng tsa mekhahlelo le mohato ho e 'ngoe le e' ngoe e entsoeng ka SMC, litšoantšiso tse tšepahalang le matla a phahameng a ho sirelletsa.
ZW8-12G e na le ZW8-12 breaker le isolator, e bitsoang breaker e kopaneng, e ka sebelisoa e le karolo ea likarolo.
Mochini o sebetsang bakeng sa sekhechana sena sa tlhatlhobo ke CT23 ea selemo ea ho tjhaja, mofuta oa motlakase kapa letsoho.
Main Technical di-parameter
Ntho |
Tlhaloso |
Lintlha |
|
1 |
Sekhahla se lekantsoeng (KV) |
12 |
|
2 |
Voltage ea Max (KV) |
12 |
|
3 |
E lekantsoe hona joale (A) |
630 |
|
4 |
Ratedshortcircuitbreakingcurrent (KA) |
20 |
|
5 |
Ratedshortcircuitmakingcurrent (tlhoro) (KA) |
50 |
|
6 |
Ratedpeakwithstandcurrent (KA) |
50 |
|
7 |
Rated1minwithstandcurrent (KA) |
20 |
|
8 |
Ratedinsulationlevel (KA) |
Powerfrequencywithstandvoltage (e omme) |
42 |
Lehalimaimpulsewithstandvoltage (tlhoro) |
75 |
||
9 |
E sebetsanang le ts'ebetso |
EA-0.3s-CO-180s-CO |
|
10 |
Mechanicallife (linako) |
10000 |
|
11 |
Nosofbreaking shortcircuitbreakingcurrent (linako) |
30 |
|
12 |
Ratedclosebrakevoltageofoperatingmachnie (V) |
110,220 |
|
13 |
Ratedopeningbrakecurrentofoperating machine (V) |
110,220 |
|
14 |
Qalo ea phallo ea hajoale (mm) |
11 ± 1 |
|
15 |
Overtravelingdistance (springcompressedlenghtofcontact) (mm) |
3 |
|
16 |
Asynchronyofopeningorclosingthreephases (ms) |
≤2 |
|
17 |
Khomotso Mokhothu (ms) |
≤2 |
|
18 |
Karolelano ea sekhahla (s) |
1.0 ± 0.2 |
|
19 |
Karolelano ea karolelano (s) |
0.7 ± 0.15 |
|
20 |
Nako ea ho bula |
Ubdermax.voltage e sebetsang |
0.015-0.05 |
Phepelo ea motlakase o sebetsang |
0.03-0.06 |
||
21 |
Linako tsa ho koala |
0.025-0.05 |
|
22 |
Maincircuitresistanceofeachphase (μΩ) |
120 |
|
23 |
Lumellana botenya ba marotholi a ho falla le li-contractact (mm) |
3 |
Tlhokomeliso: Ka kopo ikopanye le fektheri ho netefatsa maemo a morao-rao

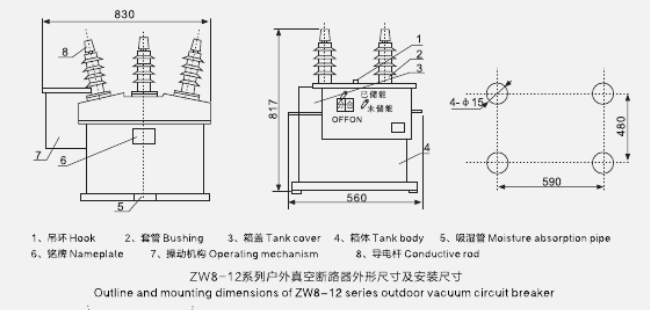

Kemiso ea litaba & tlhomamiso Size
Tlhokomeliso: Haeba mosebelisi a na le tlhoko e ikhethang, ka kopo buisana le fektheri ea rona.
