LW36-132 Outdoor High Voltage SF6 Khase ea Potoloho ea Khase

LW36-132 Outdoor High Voltage SF6 Gas Circuit Breaker Featured Image

Tlhaloso e Khutšoanyane:

E lekantsoe Voltage:132kV Litags:

Product Qaqileng

Lihlahisoa tsa Product

Dintlha E lekantsoe hajoale：3150AE lekantsoe khafetsa：50HzTlanya：Outdoor Gas Potoloho BreakerBophelo ba mechini：Linako tse 10000

Tlhaloso ea Sehlahisoa

LW36-132 Outdoor High Voltage SF6 Khase Potoloho Breaker:

SF6 e phelang ka tanka ea potoloho ea sekhahla LW25-132 ke yuniti ea kantle e ntlafalitsoeng ke k'hamphani ea rona le Xi'an High Voltage Apparatus Research Institute e nang le sebabole sa hexafluoride khase e le ho koala le arc ho tima le moelelo oa khatello e le 'ngoe ea khabinete ea mofuta oa arc e tima. Sehlahisoa se loketse 126KV sistimi ea motlakase ea AC 50HZ ea mekhahlelo e meraro, e sebelisetsoang lintlha le ho jarisa hajoale, ho fetisa hona joale le ho potoloha ha ha joale.

Melemo

a) Ts'ebetso e tšepahalang ea khefu

b) Ts'ebetso e ts'epahalang ea ts'ebetso ea mochini: ts'epahalo e phahameng ea ts'ebetso, bophelo ba mochini ho fihlela nako e fetang 10000

c) Ho ts'epahala ho tšepahalang

d) Tšepahalatiisoa ha tshebetso

e) Ts'ebetso e thata ea likarolo tsa sehlahisoa

Maemo a Tikoloho

Mocheso o potolohileng:-30° C ~ + 40 ° CMongobo o amanang:≤95% kapa≤90%

Theletsatsi le letsatsiakhatello ea mouoane e khotsofatsang:.22.2KPa;

Thekarolelano ea boleng ba khoeli le khoeli:.81.8KPa.

Bophahamo:≤3000m

Tšisinyeho ea lefatše:≤8

Boemo ba tšilafalo ea moea:Boemo Ⅲ

Khatello ea moea:≤EA-700pa

*Ho hlongoa ho tla ba ntle le mollo, ho phatloha, ho thothomela ho matla, ts'enyeho ea lik'hemik'hale le ts'ilafalo e tebileng.

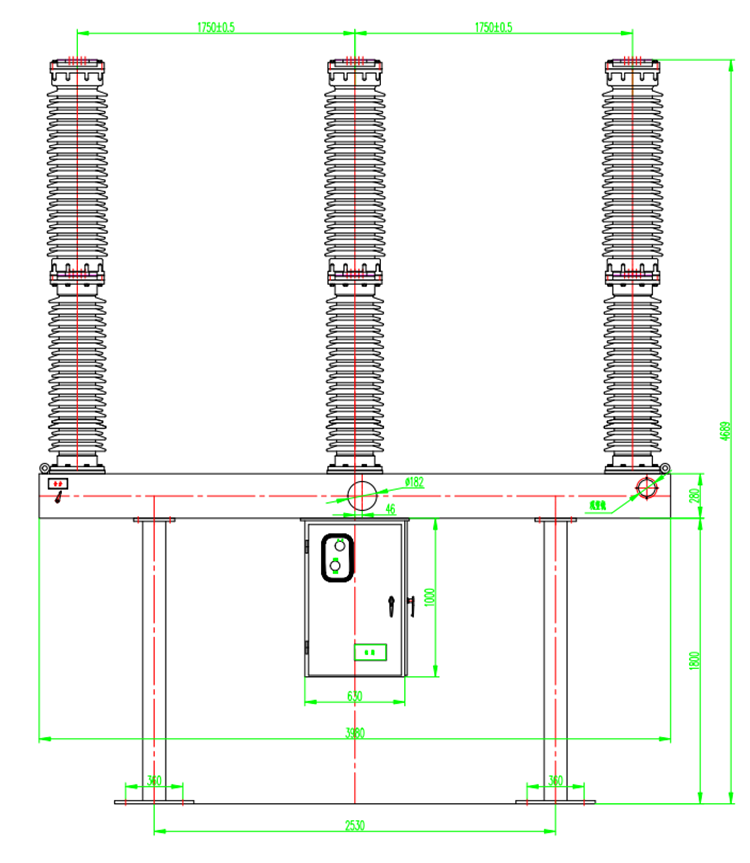

Sebopeho le Ts'ebetso

Che.	Ntho		Yuniti	Lintlha
1	E lekantsoe motlakase		KV	132
2	E lekantsoe hajoale		A	3150
3	E lekantsoe khafetsa		HZ	50
4	Palo ea pele ho hlakisa ntlha			1.5
5	Rated lekgutshwanyane oa potoloho robeha jwale		KA	40
6	E lekantsoe hajwale ea potoloho ea nakoana (tlhoro)		KA	100
7	Rated lekgutshwanyane mamello jwale		KA	40
8	E lekantsoe maqhubu a matla a matla a matla (1min)	Phase lefatšeng	KV	K · 230
8	E lekantsoe maqhubu a matla a matla a matla (1min)	Phase ho ea ho phase	KV	K · (230 + 70)
9	E lekantsoe ke lehalima ha le mamella motlakase	Phase lefatšeng	KV	K · 550
9	E lekantsoe ke lehalima ha le mamella motlakase	Phase ho ea ho phase	KV	K (550 + 103)
10	Rated tlhōrō mamella jwale		KA	100
11	Rated tsoa mohato jwale		KA	10
12	Haufi le phoso hona joale		KA	90% 1K
13	Bophelo ba motlakase ba lintlha tsa potoloho e khuts'oane tse lekantsoeng hajoale		linako	20
14	E lekantsoe nako e khutšoanyane ea potoloho		s	4
15	E lekantsoe mohala ho lefisa haufinyane		A	31.5
16	Rated tshebetso tatelano			EA-0.3s-CO-180s-CO35
17	Khanyetso e kholo ea potoloho		μΩ	35
18	Rated SF6 khatello ea khase		MPA	0.6
19	Sekhahla sa ho dutla ha khase ea SF6		thapama	0.55
20	Mongobo oa khase ea SF6 (V / V)			150
21	Bophelo ba mechini		linako	10000
